Product Details

Product Information

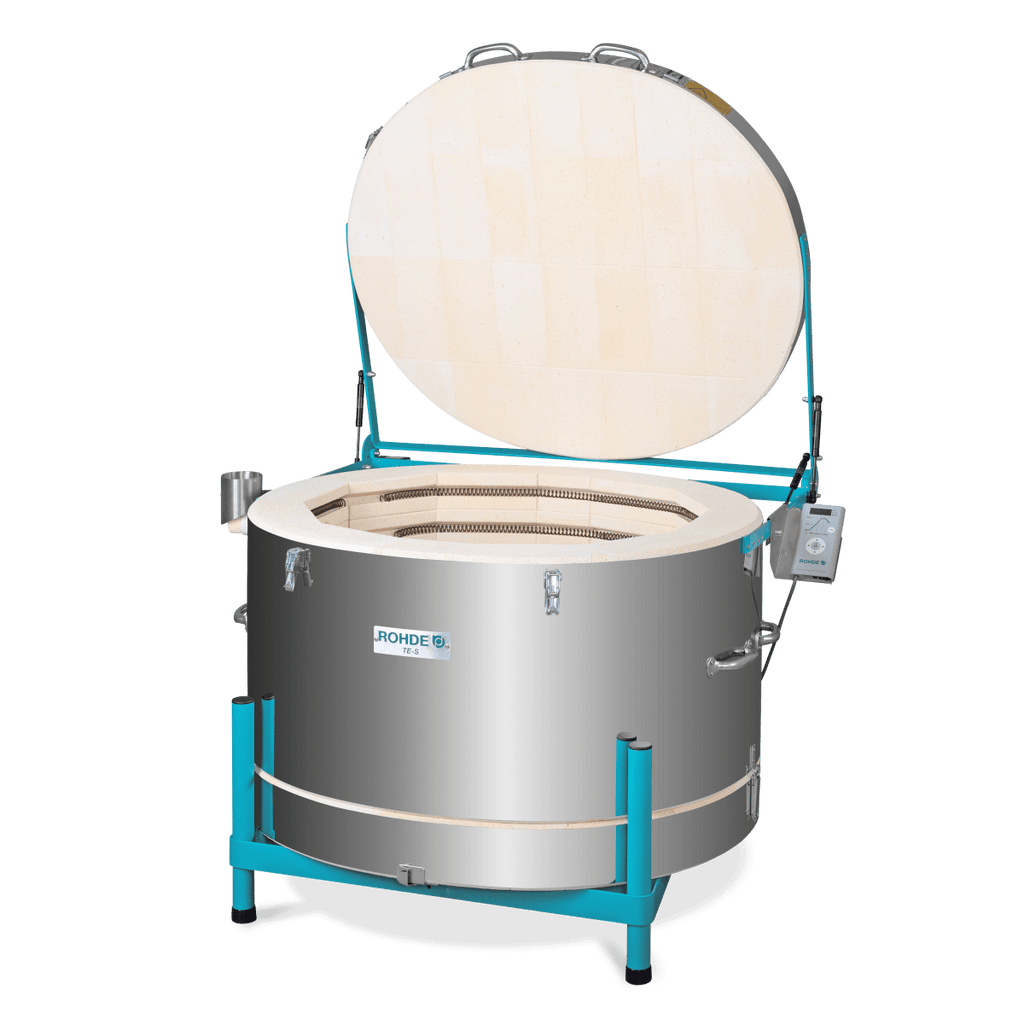

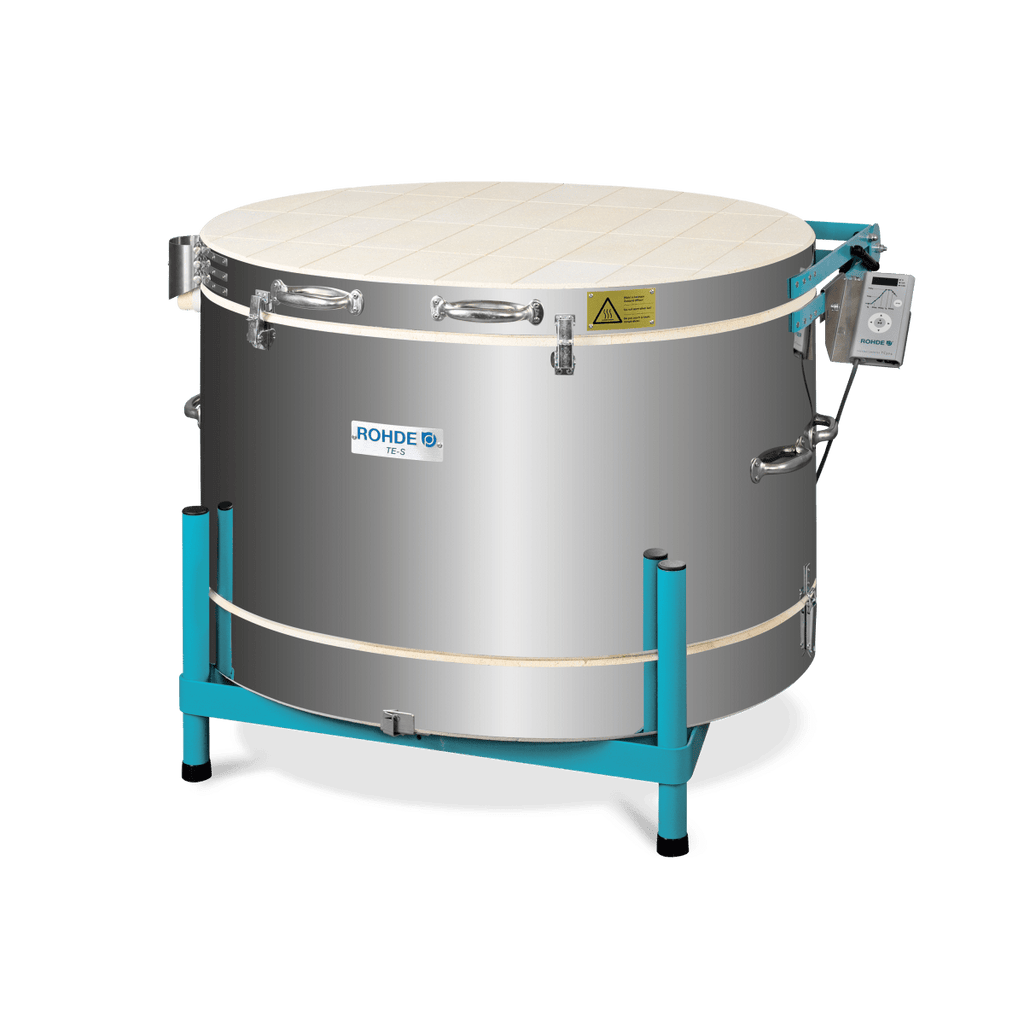

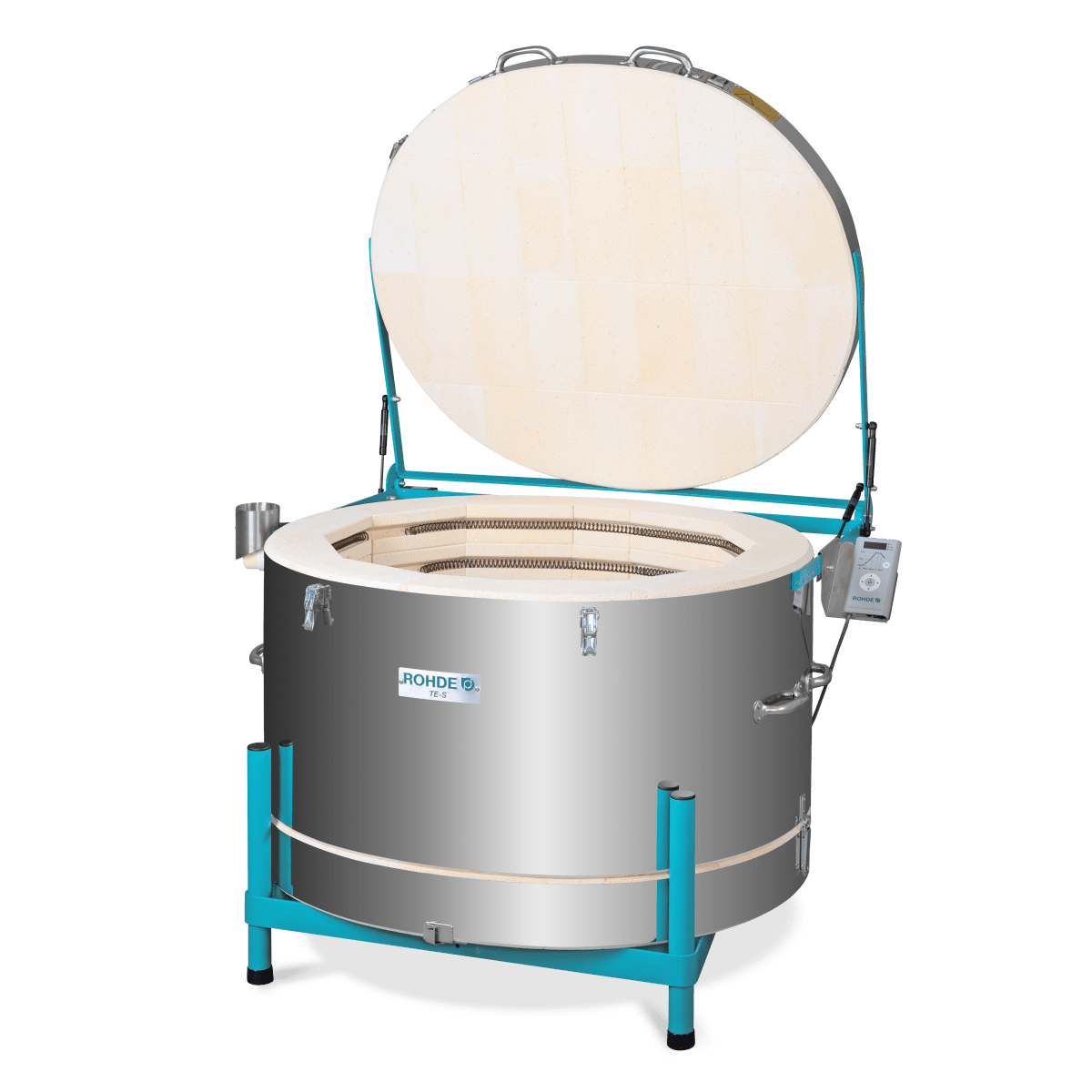

The ROHDE TE/S series of kilns are designed to be expandable in size, so you can start with a smaller model and then grow to a larger size later*. The ‘Rohde design’ can help with installation and limited access. You can separate the main cylinder with lid, base and legs to go through a narrow doorway (>550mm). The top temperature is 1320°C; however, it is designed for a daily working temperature of 1280°C.

This kiln is a quality professional kiln designed for those who are regularly firing to high temperatures.

 *Note, some models in the S range, are at the larger size already and cannot grow. See list below.

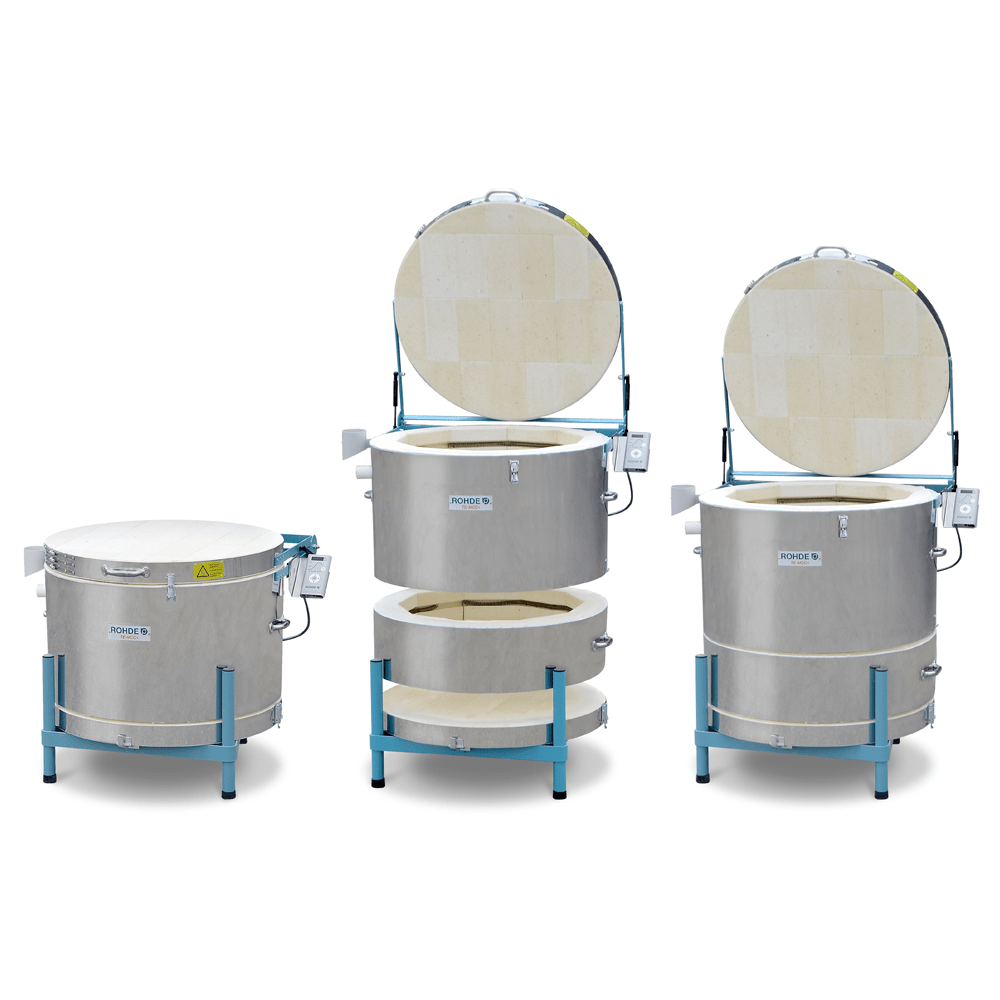

Kilns with increasing volume potential:

  • TE 80 S becomes the TE 100 S
  • TE 95 S becomes the TE 145 S
  • TE 130 S becomes the TE 200 S
  • TE 165 S becomes the TE 250 S

Kiln comes with 3 years warranty*.

*does not include element wear, shelf damage or improper use.

Special features of the TE/S series:

  • 2 layers of insulation, including super-efficient thermal bricks and 15 mm microporous insulating board.
  • The kiln sizes 80, 95, 130, and 165 can grow with an additional ring.
  • Reversible kiln stand, handy and practical to help different-sized people.
  • Gas strut, spring-supported opening mechanism for the lid, which makes the lid lighter to lift and close.
  • A quieter working kiln using solid-state relays.
  • Controllers work with ‘Mykiln App’. Watch and edit your kiln firings from the comfort of your armchair.

The S series of kiln is available with bottom heating. Note, it will need an additional 3kw.

Why buy a kiln from Hot Clay?

We have an experienced team who will support you every step of the way, including free technical help if you need it. Call Hot Clay on 01934 863040 option 3, and we will find the best setup for you. If you find this kiln cheaper elsewhere, please contact us and we'll do our best to match it.

Technical Specifications

Electrical:

  • 15kW/66A 230V single phase, no plug and cable supplied, a qualified electrician is required to wire the kiln.
  • 15kW/22A (per phase) 400V three phase, 32 amp 5-pin CEE plug and cable.

Maximum Temperature: 1320°C.

Equipment: Type 'S' thermocouple.

This kiln will be supplied with a 'switch unit' (single phase only). The box will be 500mm x 500mm x 210mm connected by a 3m cable.

Dimensions:

  • Internal dimensions: 730mm x 630mm x 680mm (W x D x H)
  • External dimensions: 1050mm x 980mm x 1020mm (W x D x H)
  • Weight: 180kg
  • Volume: 250 Litres

Furniture set:

  • 8 x 580mm x 325mm x 18mm semi-circular kiln shelves (2 shelves per level)
  • 18 x 25, 50, 75 and 100mm props

CE Certified

For costs on firing, see product attachments.

Controller

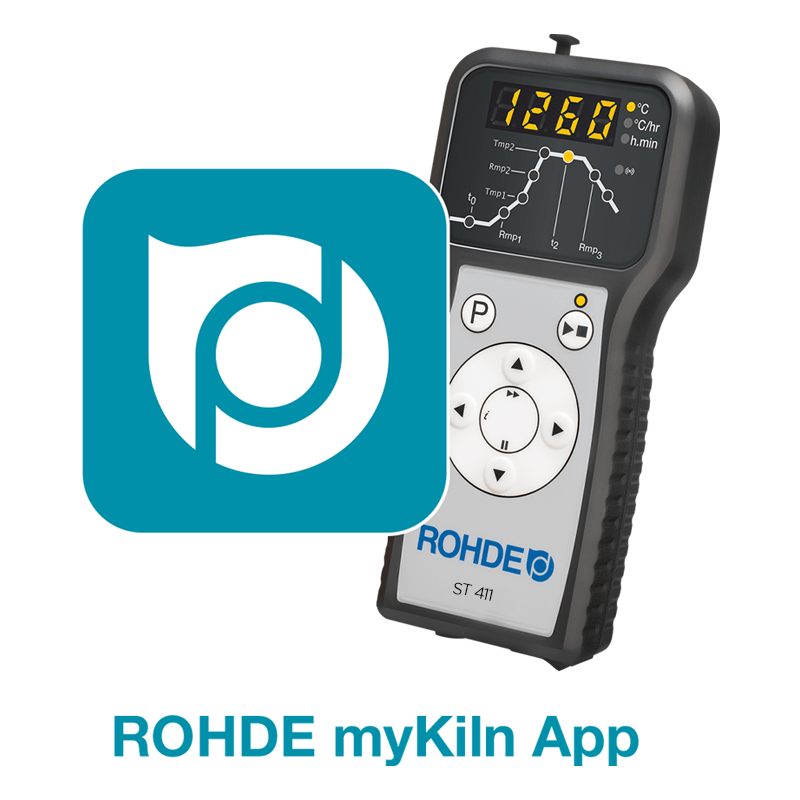

The new European ST310 Bentrup controller uses its simple firing graph but is housed within the UK Stafford hardware. The ST310 is standard issue with a Rohde kiln but you can upgrade to the ST411 for more program spaces and segments.

For more information and help to make an informed decision read our Rohde Controller Comparison.

Visit the Rohde website for more information on the ROHDEgraph app.

Delivery Details
  • This is not a stock item. Priority delivery is not available for this item.
  • We are pleased to offer free delivery on all Rohde kilns to mainland UK, please see full delivery details here.
  • All Rohde kilns are delivered to Hot Clay first for inspection before going onwards. All other items will be sent with the kiln.
  • Delivery is kerbside only and does not include installation. Please consider that you may need help to situate the kiln.
  • Lead times vary for each model and size and can change from week to week, for an estimate on lead time or any further enquiries please contact us.
  • When ordering your kiln please state any access requirements at the delivery address in the special instructions.
  • Upon dispatch of the kiln, our team will be in touch to book a delivery day that is convenient with you. Delivery will be between 9am and 5pm on your nominated day unless requested otherwise. If you require a timed (AM/PM) or dedicated day (Saturday/Sunday) delivery this will incur a surcharge.
  • If you are in a remote location or have restricted access and require a specialist vehicle, please be aware that this may incur a surcharge.
  • Custom delivery can be provided at an additional cost, although this can be very expensive. We may be able to help with advice and quotes using specialist logistical companies.
