Segas Raku Burner Kit

A burner kit ideally made for 45 Litres (internal with ceramic blanket) sized raku kiln builds.

For further information and products associated with raku read our article on our knowledge base.

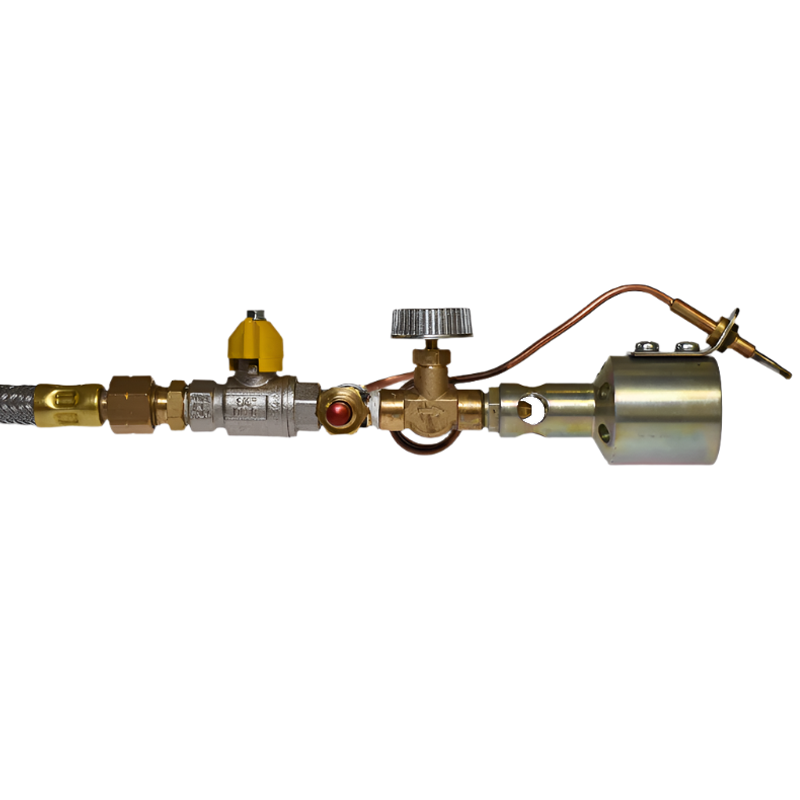

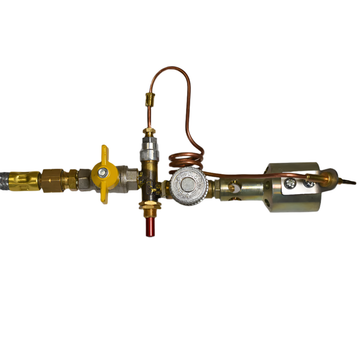

• The burner has a needle valve for fine flame adjustment.
• Flame failure protection.
• Isolation tap and ends in a 3/8’’ BSPM left-hand thread.
• The hose is 3m long and armoured with an overbraid, and crimped 3/8’’ BSPF swivels at each end.

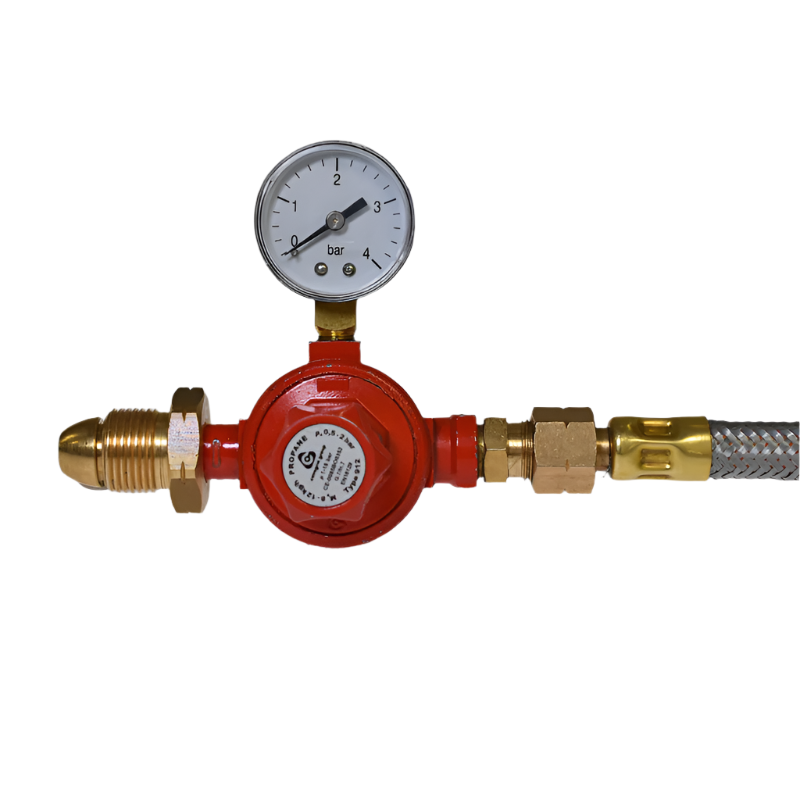

• 0.5 to 2 bar variable pressure gas regulator complete with pressure gauge (manometer) and a POL fitting for connection to the bottle, which is a 3/8’’ BSPM left-hand thread.

Don’t forget to tighten the nut and test all joins with a leak detection liquid.

We strongly advise that you attend a course to learn how to use a burner with propane safely.

There are risks from burns and fire from incorrect use of the burner to breathing difficulties and allergic reactions from propane. You should carry out your own risk assessment before a firing.

TDS for Segas Burner
