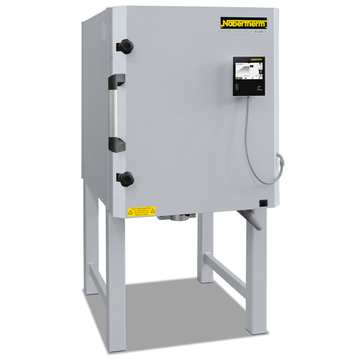

Nabertherm 2-sided Chamber Pottery Kiln: NE70

1x NE70 with furniture set and kiln stand with castors in stock ready for immediate dispatch.

When you need a smaller sized kiln but with the comfort of not having to bend for loading and unloading then a chamber kiln is the preferred choice. Normally front-opening models are significantly more expensive than top loading kilns, but the N series chamber kiln offers the ergonomic appeal of a traditional front loader but a more realistic price tag. These smaller chamber kilns are perfect for the hobby or occasional ceramic or glass user.

Note, the N40E & N40E/R are designed as table top models.

The top temperature of the NE(/R) series is 1300°C. it should be noted that firing to higher temperatures with the limit of the element number and kw available, the kilns will take more time to complete a firing program.

Kiln comes with 3 years warranty*.

*does not include element wear, shelf damage or improper use.

Standard Equipment:

• Heating elements protected in grooves.
• Designed as a table-top model.* But legs are available as an accessory extra. (but not N40…)
• Dual shell housing for low outside temperatures.
• Wide opening door.

*If ordered with the legs, this kiln will be in 2 separate parts. The main body will have to be lifted using manual handling equipment to fit the base (legs) underneath.

Why buy a kiln from Hot Clay?

We have an experienced team who will support you every step of the way, including free technical help if you need it. Call Hot Clay on 01934 863040 option 3, and we will find the best setup for you. If you find this kiln cheaper elsewhere, please contact us and we'll do our best to match it.

Electrical:

• 3.6kW/15.7A 230V single phase, 16 amp 3-pin CEE plug and cable.
• 5.5kW/13.8A 400V (amps per phase) 3 phase, 16 amp 5-pin CEE plug and cable.

Top Temperature: 1300 °C.

Equipment: Type ‘S’ thermocouple.

Dimensions:

• Internal dimensions: 400mm x 380mm x 450mm (W x D x H)
• External dimensions: 690mm x 850mm x 700*mm (W x D x H) *Height with base - Add 700mm
• Weight: 120kg
• Volume: 70 Litres

Optional furniture set:

• 4 x 340mm x 370mm x 13mm kiln shelves
• 9 x 50mm and 6 x 100mm shelf props

CE Certified.

Any questions regarding the new controller you are welcome to speak to the technical help line by calling 01934863040 option 3 or emailing info@hot-clay.co.uk

• This kiln will be ordered direct from Nabertherm and the current lead time is approximately 2 weeks (This is subject to change depending on availability). Priority is not an option for this item, all other items ordered with the kiln will be sent separately.
• We are pleased to offer free delivery of this kiln to anywhere in the UK, as well as the following European destinations (Mainland only, not islands): Austria, France, Poland, Belgium, Germany, Portugal, Croatia, Hungary, Slovakia, Czech Republic, Ireland, Slovenia, Denmark, Italy, Spain, Estonia, Luxembourg, Sweden, Finland, Netherlands. If you would like this kiln delivered to any destination not listed here, please contact us first before ordering.
• Delivery is kerbside only and does not include installation. Please consider that you may need help to situate the kiln.
• Delivery is an all-day delivery, which you will be contacted by the courier beforehand to arrange.
• Custom delivery can be provided at an additional cost, although this can be very expensive. We may be able to help with advice and quotes using specialist logistical companies.
• When ordering your kiln please state any access requirements at the delivery address in the special instructions.
• If you are in a remote location or have restricted access and require a specialist vehicle, please be aware that this may incur a surcharge.
